Guangzhou Serui Battery Technology Co,.Ltd Your reliable partner in Batteries
8 Years
| Ask Lasest Price | |
| Brand Name : | SER or OEM |
| Model Number : | 2ER10450 |
| Certification : | CE SGS ROSH MSDS,UL CE RoHS FCC |
| Price : | Negotiable |
| Supply Ability : | 100,000pcs per day |
| Delivery Time : | 5-8 work days |
Technical specifications:
| Battery Technology | Lithium thionyl chloride / LiSOCL2 |
| Battery structure | High capacity type |
| Nominal Voltage | 7.2V |
| Nominal Capacity | 800mAh |
| Open circuit voltage | 7.32V (at +20°C) |
| Cut off Voltage | 4.0V |
| Max. Constant Current | 25mA |
| Max. Pulse Current | 60mA |
| Operating Temperature | -55°C~+85°C/-67°F~+185°F |
| Storage Life | ≥10 years |
| Self – Discharge Rate: | <1% per year |
| External Diameter (Max) | 21mm |
| External Height (Max) | 45.3mm |
| Weights | 18g |
| Certification | CE RoHS SGS UN38.3 MSDS |
| Application | Meters, GPS tracking, Medical devices, Military Radio, etc. |
| Sample Lead time | As usual 7-10 working days |
Features
1. High continuous discharge current and current pulses.
2. High energy density, 430Wh/Kg.
3. Open circuit voltage above 3.65V for single cell.
4. Wide range of operating temperature(-55°C~+85°C).
5. Stable voltage and current over 95% of the cell capacity is discharged at high plateau voltage.
6. Long operating time (over 8 years) for continuous low current discharge with high current pulses.

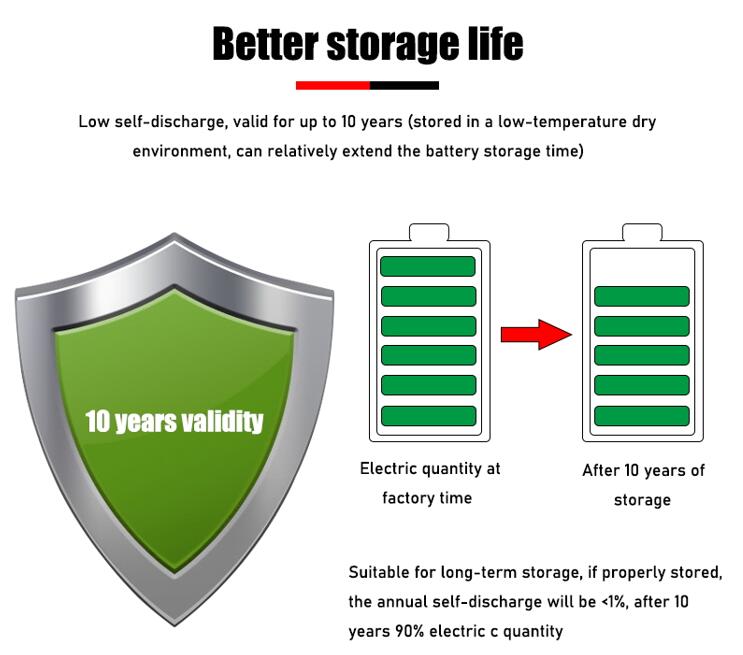

7. Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under normal room temperature).
Model List
| Type | IEC Model | Model | Size(φ) mm×mm | Voltage (V) | Capacity (mAh) | Maximum continuous current (mA) | Weight(g) |
| Energy Type | 1/2AA | ER14250H | 14.5×25.0 | 3.6 | 1200 | 50 | 11 |
| 2/3AA | ER14335H | 14.5×33.5 | 3.6 | 1600 | 50 | 13 | |
| AA | ER14505H | 14.5×50.5 | 3.6 | 2400 | 100 | 19 | |
| 2/3A | ER17335H | 17.5×33.5 | 3.6 | 2200 | 100 | 19 | |
| ER17505H | 17.5×50.5 | 3.6 | 3500 | 130 | 26 | ||
| A | ER18505H | 18.5×50.5 | 3.6 | 3800 | 100 | 32 | |

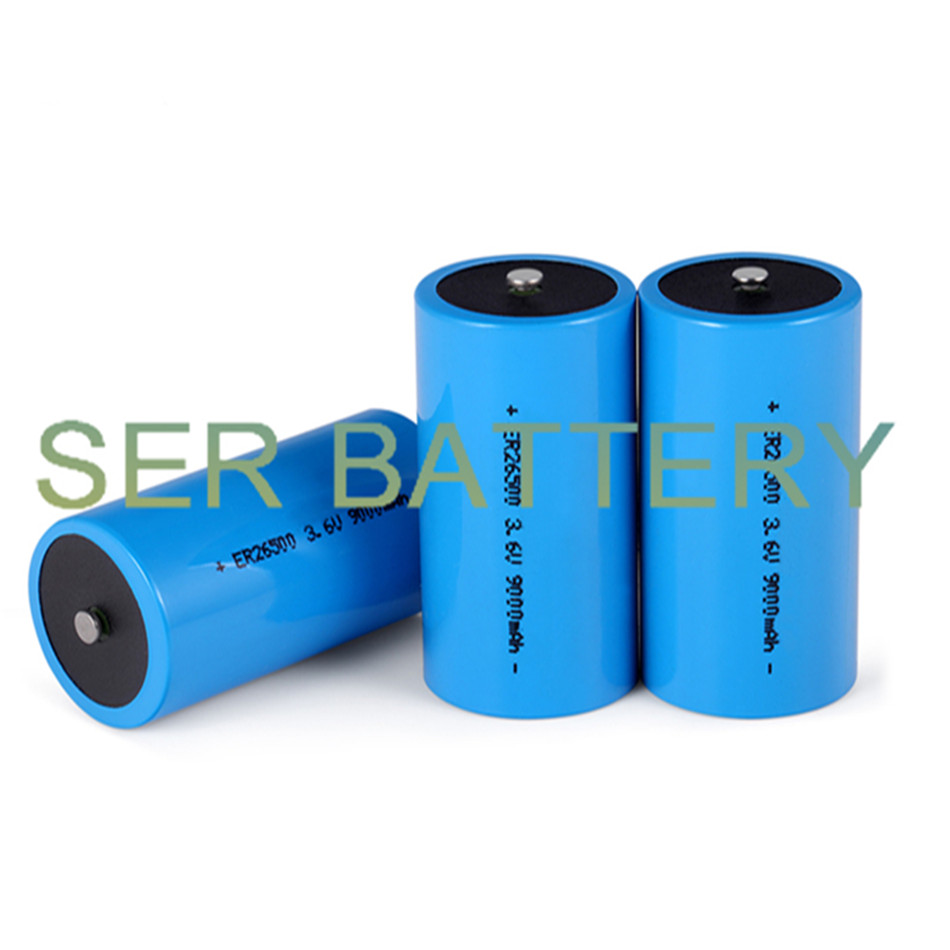

| C | ER26500H | 26.2×50.0 | 3.6 | 9000 | 200 | 55 | |
| D | ER34615H | 34.2×61.5 | 3.6 | 19000 | 200 | 107 | |
| CC | ER261020 | 26.2×102.0 | 3.6 | 15000 | 200 | 100 | |
| DD | ER341245 | 34.2×124.5 | 3.6 | 35000 | 300 | 220 | |
| 9V | ERA9V | 49.8×17.8×27.5 | 10.8 | 1200 | 50 | 40 | |
| Power Type | 1/2AA | ER14250M | 14.5×25.0 | 3.6 | 1000 | 200 | 11 |
| 2/3AA | ER14335M | 14.5×33.5 | 3.6 | 1300 | 200 | 13 | |
| AA | ER14505M | 14.5×50.5 | 3.6 | 2000 | 400 | 19 | |
| 2/3A | ER17335M | 17.5×33.5 | 3.6 | 1900 | 400 | 20 | |
| ER17505M | 17.5×50.5 | 3.6 | 3000 | 600 | 30 | ||
| A | ER18505M | 18.0×50.5 | 3.6 | 3200 | 600 | 32 | |
| C | ER26500M | 26.2×50.0 | 3.6 | 6500 | 1000 | 55 | |
| D | ER34615M | 34.2×61.5 | 3.6 | 14500 | 2000 | 107 |
Applications
The battery have wide applications:
Utility Metering
Automatic Meter Reading
Medical Electronics
Memory Backup
Tracking Systems
Law Enforcement (RFID)
Earthquake Detectors
Digital Control Devices
Remote Monitory Systems
Electronic Toll Tags
Scientific Instruments
Portable Communication Equipment
Military Radio Stations
And other electric powered devices requiring small size High power batteries.
Packaging & Shipping
Packing:
Tray bulk, Blister card, PVC shrink, Gift-Box, Nude packing, OEM packing, etc.
Shipping:
Leadtime is 3-20 working days for normal orders.
Pictures:
2ER10450 7.2V AAA Li-SOCl2 Batteries in series For Alarm PLC tag heating temperature controller
We can add the Pin, wire and connector on the battery according to requirement
Why Choose us?
Company Advantages:
We have been continously developing new products to meet requirements of different customers and applications since 1980.
what's more, performance of batteries such as safety, energy density, temperature characteristics, discharge platform,
resistance, cycle life is always improving.
Pursuing a business concept of “Quality First”, our assembly lines are certified by the Chinese military and ISO9001 quality system.
We also have a fully equipped environment and reliability testing center to assure our products meeting military specifications.
High quality batteries:
Our batteries are in enough capacity, and lower in RI. Before shipment, we will 100% inspect and ensure battery quality well approved by our clients.
Better service:
Professional and experienced engineers can provide satisfied perfect solutions to customers. New designs can lead to actual products within 15days.
A professional,dedicated and well known technical& marketing team with the ability to identify,support and serve our customers with diamante service.
We always offer customers with highest quality, reasonable price and intimate after-service to support them on marketing developing. It is our wish to obtain muti-benefit with global users through OEM and ODM business.
Our Certifications:

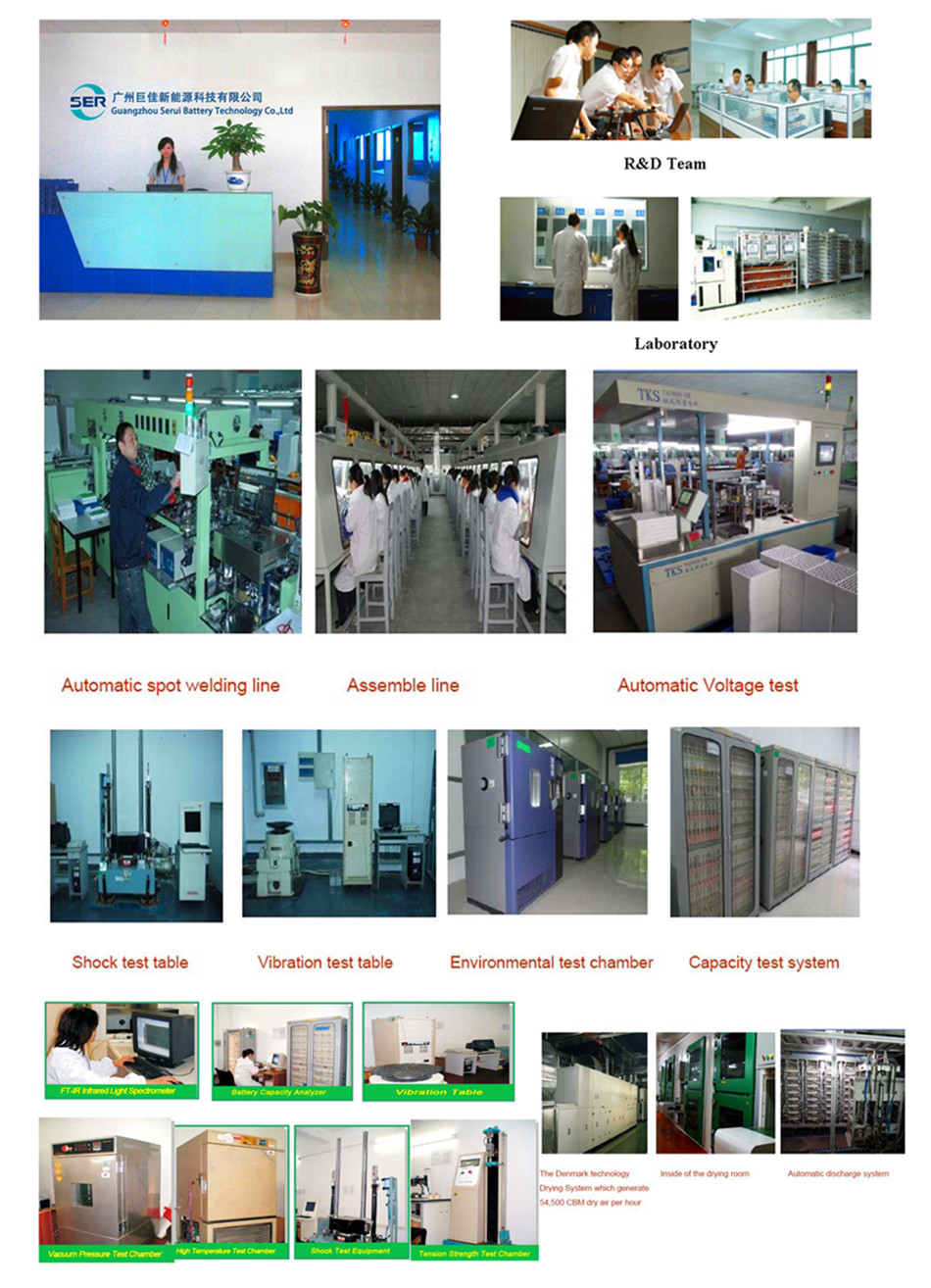

Our Factory
Look at those pictures. To make sure the producing environment is total dry, we introduced foreign technology and machine. This drying system comes from Denmark; it can generate 54500CBM dry air per hour.
It owns modern produce equipment and rater complete necessary facilities.
Meanwhile we have many automatic machines; this is our automatic voltage test machine. Those modern production equipments laid a solid foundation for producing high-quality products.
|
|
