| Brand Name : | SER or OEM |
| Model Number : | ER14250M |
| Certification : | CE SGS ROSH MSDS,UL CE RoHS FCC |
| Price : | Negotiable |
| Supply Ability : | 100,000pcs per day |
| Delivery Time : | 5-8 work days |
Technical specifications:
Features
1. High continuous discharge current and current pulses.
2. High energy density, 430Wh/Kg.
3. Open circuit voltage above 3.65V for single cell.
4. Wide range of operating temperature(-55°C~+85°C).
5. Stable voltage and current over 95% of the cell capacity is discharged at high plateau voltage.
6. Long operating time (over 8 years) for continuous low current discharge with high current pulses.
7. Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under normal room temperature).
Model List
| Type | IEC Model | Model | Size(φ) mm×mm | Voltage (V) | Capacity (mAh) | Maximum continuous current (mA) | Weight(g) |
| Energy Type | 1/2AA | ER14250H | 14.5×25.0 | 3.6 | 1200 | 50 | 11 |
| 2/3AA | ER14335H | 14.5×33.5 | 3.6 | 1600 | 50 | 13 | |
| AA | ER14505H | 14.5×50.5 | 3.6 | 2400 | 100 | 19 | |
| 2/3A | ER17335H | 17.5×33.5 | 3.6 | 2200 | 100 | 19 | |
| ER17505H | 17.5×50.5 | 3.6 | 3500 | 130 | 26 | ||
| A | ER18505H | 18.5×50.5 | 3.6 | 3800 | 100 | 32 | |
| C | ER26500H | 26.2×50.0 | 3.6 | 9000 | 200 | 55 | |
| D | ER34615H | 34.2×61.5 | 3.6 | 19000 | 200 | 107 | |
| CC | ER261020 | 26.2×102.0 | 3.6 | 15000 | 200 | 100 | |
| DD | ER341245 | 34.2×124.5 | 3.6 | 35000 | 300 | 220 | |
| 9V | ERA9V | 49.8×17.8×27.5 | 10.8 | 1200 | 50 | 40 | |
| Power Type | 1/2AA | ER14250M | 14.5×25.0 | 3.6 | 1000 | 200 | 11 |
| 2/3AA | ER14335M | 14.5×33.5 | 3.6 | 1300 | 200 | 13 | |
| AA | ER14505M | 14.5×50.5 | 3.6 | 2000 | 400 | 19 | |
| 2/3A | ER17335M | 17.5×33.5 | 3.6 | 1900 | 400 | 20 | |
| ER17505M | 17.5×50.5 | 3.6 | 3000 | 600 | 30 | ||
| A | ER18505M | 18.0×50.5 | 3.6 | 3200 | 600 | 32 | |
| C | ER26500M | 26.2×50.0 | 3.6 | 6500 | 1000 | 55 | |
| D | ER34615M | 34.2×61.5 | 3.6 | 14500 | 2000 | 107 |
Applications
The battery have wide applications:
Utility water/ Gas Meter, smart locks, Automatic Meter Reading; Medical Equipment, CMOS memory backup, Tracking
Systems,Remote Monitory Systems;
Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Electronic Toll Tags; Scientific Instruments, Portable
Communication Equipment, Military Radio Stations; and other electric powered devices requiring small size, high power Batteries.

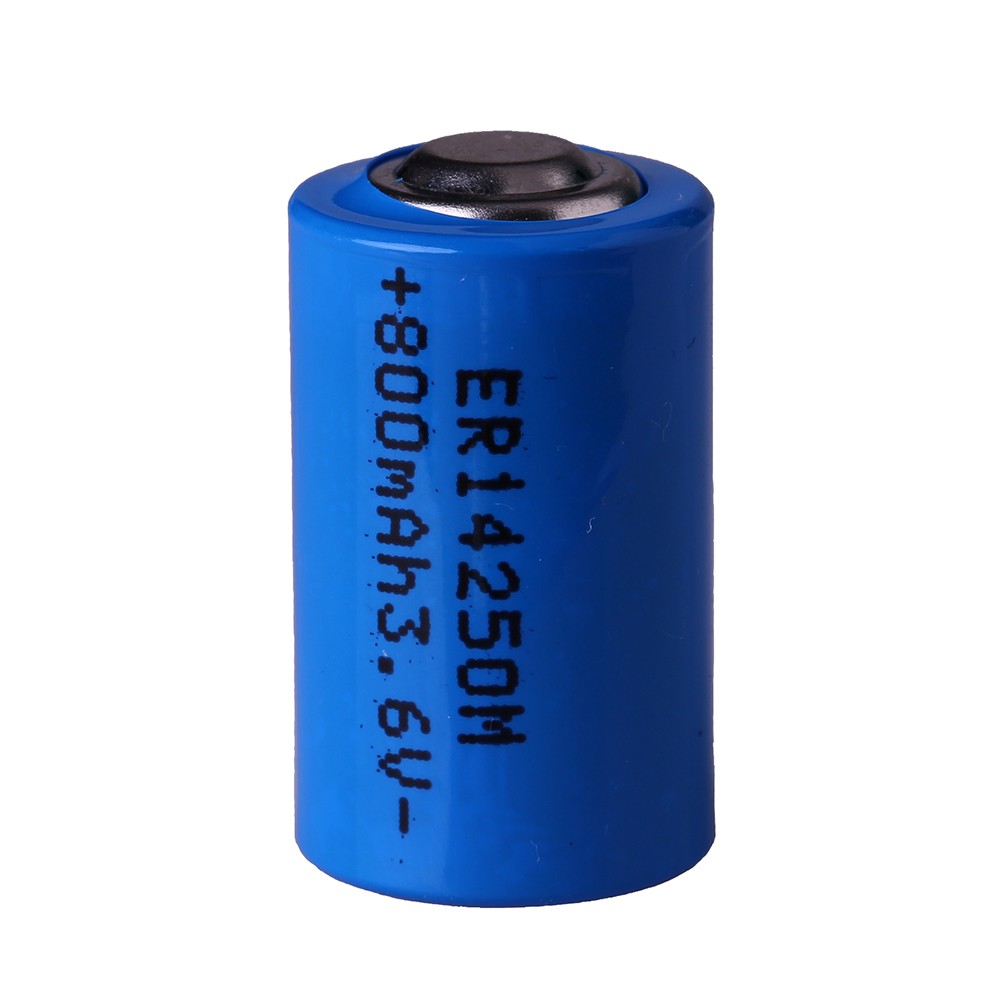

3.6V LS14250M Li-SOCl2 1/2AA Size R6 ER14250M lithium primary battery 800mAh For CNC Machine Tools Touch Screen
We can add the Pin, wire and connector on the battery according to requirement
Why Choose us?
Company Advantages:
More than 20 years experience in manufacturing and marketing batteries.
No MOQ requirement, short lead time.
Quality assurance: All defective items will be replaced once confirmed.
Free promotional gifts: display racks, strips, pens, bags, T-shirts, etc.
Service: 3 agents in China, 1 office in Sweden, 1 office in USA.
Our batteriess can be used for your products or resale.
Please contact us for details.
Our Certifications:
Our Factory
FAQ
1.Q:Can I have a sample for testing?
A: Of course.please send inquiry to us now and we will arrange sample soon.
2.Q: Do you have Minium order quantity limit?
A: Yes, but it do not have MOQ for standard model, it depends on battery model. Please contact us in detail.
3. Q: How about the lead time?
A: About 7 days for samples. About 19 days for mass production .
4. Q: How about shipping and delivery time?
A: By UPS,DHL or Fedex about 7 days,by sea about 25days.
5. Q: What about after-sale service?
A: We will offer you 1 year guarantee. If there are any problems, please inform us, we will offer you positive solutions
Any query,please send inquiry to us now and get more information.
|
|
