| Brand Name : | SER or OEM |
| Model Number : | ER10280 |
| Certification : | CE SGS ROSH MSDS,UL CE RoHS FCC |
| Price : | Negotiable |
| Supply Ability : | 100,000pcs per day |
| Delivery Time : | 5-8 work days |
Technical specifications:
| Battery Technology | Lithium thionyl chloride / LiSOCL2 |
| Battery structure | High capacity type |
| Nominal Voltage | 3.6V |
| Nominal Capacity | 500mAh |
| Open circuit voltage | 3.66V (at +20°C) |
| Cut off Voltage | 2.0V |
| Max. Constant Current | 20mA |
| Max. Pulse Current | 65mA |
| Operating Temperature | -55°C~+85°C/-67°F~+185°F |
| Storage Life | ≥10 years |
| Self – Discharge Rate: | <1% per year |
| External Diameter (Max) | 10.5mm |
| External Height (Max) | 28mm |
| Weights | 10g |
| Certification | CE RoHS SGS UN38.3 MSDS |
Application | Meters, GPS tracking, Medical devices, Military Radio, etc. |
| Sample Lead time | As usual 7-10 working days |
Features
1. High continuous discharge current and current pulses.
2. High energy density, 430Wh/Kg.
3. Open circuit voltage above 3.65V for single cell.
4. Wide range of operating temperature(-55°C~+85°C).
5. Stable voltage and current over 95% of the cell capacity is
discharged at high plateau voltage.
6. Long operating time (over 8 years) for continuous low current
discharge with high current pulses.
7. Low self-discharge rate (less than 1% per year) and long storage
life (over 10 year under normal room temperature).
Model List
| Type | IEC Model | Model | Size(φ) mm×mm | Voltage (V) | Capacity (mAh) | Maximum continuous current (mA) | Weight(g) |
| Energy Type | 1/2AA | ER14250H | 14.5×25.0 | 3.6 | 1200 | 50 | 11 |
| 2/3AA | ER14335H | 14.5×33.5 | 3.6 | 1600 | 50 | 13 | |
| AA | ER14505H | 14.5×50.5 | 3.6 | 2400 | 100 | 19 | |
| 2/3A | ER17335H | 17.5×33.5 | 3.6 | 2200 | 100 | 19 | |
| ER17505H | 17.5×50.5 | 3.6 | 3500 | 130 | 26 | ||
| A | ER18505H | 18.5×50.5 | 3.6 | 3800 | 100 | 32 | |
| C | ER26500H | 26.2×50.0 | 3.6 | 9000 | 200 | 55 | |
| D | ER34615H | 34.2×61.5 | 3.6 | 19000 | 200 | 107 | |
| CC | ER261020 | 26.2×102.0 | 3.6 | 15000 | 200 | 100 | |
| DD | ER341245 | 34.2×124.5 | 3.6 | 35000 | 300 | 220 | |
| 9V | ERA9V | 49.8×17.8×27.5 | 10.8 | 1200 | 50 | 40 | |
| Power Type | 1/2AA | ER14250M | 14.5×25.0 | 3.6 | 1000 | 200 | 11 |
| 2/3AA | ER14335M | 14.5×33.5 | 3.6 | 1300 | 200 | 13 | |
| AA | ER14505M | 14.5×50.5 | 3.6 | 2000 | 400 | 19 | |
| 2/3A | ER17335M | 17.5×33.5 | 3.6 | 1900 | 400 | 20 | |
| ER17505M | 17.5×50.5 | 3.6 | 3000 | 600 | 30 | ||
| A | ER18505M | 18.0×50.5 | 3.6 | 3200 | 600 | 32 | |
| C | ER26500M | 26.2×50.0 | 3.6 | 6500 | 1000 | 55 | |
| D | ER34615M | 34.2×61.5 | 3.6 | 14500 | 2000 | 107 |
Applications
The battery have wide applications:
Utility water/ Gas Meter, smart locks, Automatic Meter Reading; Medical Equipment, CMOS memory backup, Tracking
Systems,Remote Monitory Systems;
Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Electronic Toll Tags; Scientific Instruments, Portable
Communication Equipment, Military Radio Stations; and other electric powered devices requiring small size, high power Batteries.
Packaging & Shipping
Packing:
Tray bulk, Blister card, PVC shrink, Gift-Box, Nude packing, OEM packing, etc.
Shipping:
Leadtime is 3-20 working days for normal orders.
Pictures:

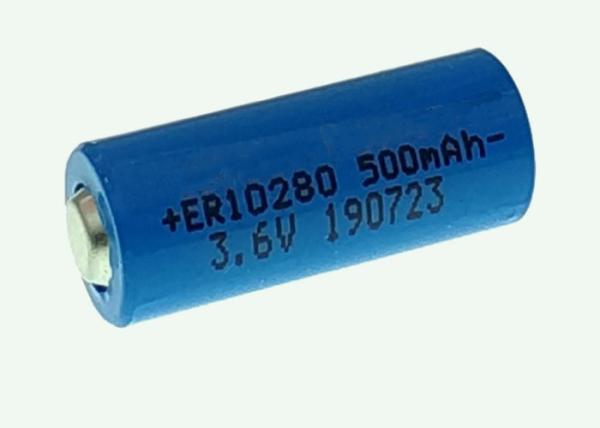

Long storage life battery ER10280 lisocl2 battery with wire lithium thionyl chloride battery in stock for military radio
We can add the Pin, wire and connector on the battery according to
requirement
Why Choose us?
Company Advantages:
We have been continously developing new products to meet
requirements of different customers and applications since 1980.
what's more, performance of batteries such as safety, energy density, temperature characteristics, discharge platform,
resistance, cycle life is always improving.
Pursuing a business concept of “Quality First”, our assembly lines
are certified by the Chinese military and ISO9001 quality system.
We also have a fully equipped environment and reliability testing center to assure our products meeting military specifications.
High quality batteries:
Our batteries are in enough capacity, and lower in RI. Before
shipment, we will 100% inspect and ensure battery quality well
approved by our clients.
Better service:
Professional and experienced engineers can provide satisfied
perfect solutions to customers. New designs can lead to actual
products within 15days.
A professional,dedicated and well known technical& marketing team
with the ability to identify,support and serve our customers with
diamante service.
We always offer customers with highest quality, reasonable price
and intimate after-service to support them on marketing developing.
It is our wish to obtain muti-benefit with global users through OEM
and ODM business.
Our Certifications:
Our Factory
Look at those pictures. To make sure the producing environment is total dry, we introduced foreign technology and machine. This drying system comes from Denmark; it can generate 54500CBM dry air per hour.
It owns modern produce equipment and rater complete necessary facilities.
Meanwhile we have many automatic machines; this is our automatic voltage test machine. Those modern production equipments laid a solid foundation for producing high-quality products.
|
|
